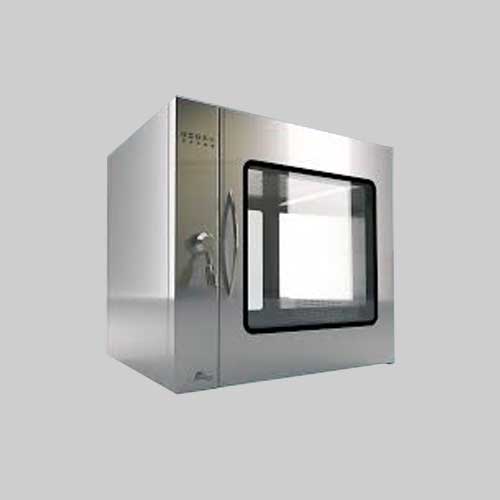

We are manufactures of Pass box interlocking systems for Static & Dynamic Pass Box Controller. Our product are designed and manufactured considering long trouble free operation with easy serviceability. Designed products are tested for EMI/RFI interferes to avoid filed failure and are CE approved.

User Features :

• • Dynamic Pass box door interlocking logic
• • Air Flow motor Controlling
• • UV Lamp Controlling
• • CF Lamp Controlling
• • Auxiliary output Controlling
• • Supports 2 Door Interlocking

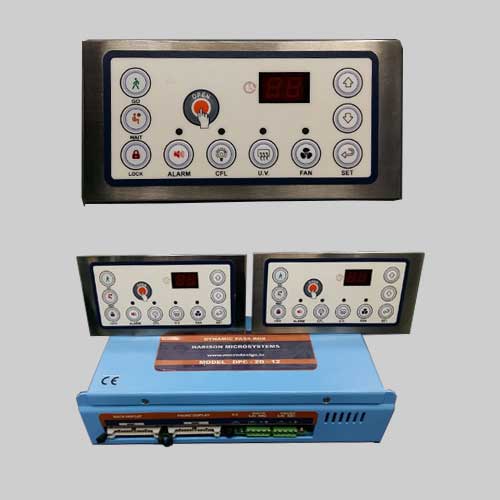

• • Status Indication on MMI : Go , Wait , Door Locked
• • Buzzer Output
• • Motor Trip input
• • Alarm Mute
• • Door Delay time between Door opening is programmable in min/sec
• • Seven Segment display for delay time indication, Door status indication
• • Parametric setting through up/down/ set key
• • SS laser cut MMI with easy installation
• • User specific software upgrade possible



Technical Features :

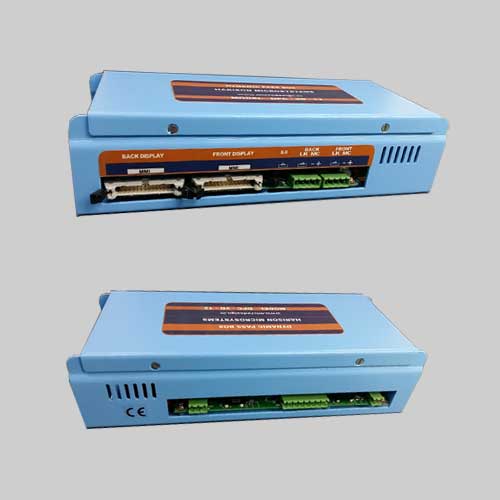

• • Microcontroller based design
• • Emi/ Rfi tested design
• • High quality electronic component
• • Seven segment indication with parametric setting program
• • Hmi with LED indication
• • 12 Vdc output for magnets
• • OEN relay output
• • Opto Isolation for inputs and outputs
• • 230Vac / 110 Vac option available
